What Makes Neodymium Magnets Ideal for Precast Formwork?

Introduction

In precast production, the way formwork is fixed to the casting bed directly affects speed, accuracy, and labor efficiency. Neodymium magnets have become the preferred solution because they deliver very high holding force in a compact size, making it easier to position and secure shutters without drilling, welding, or time-consuming clamps. This article explains the material and performance traits that make neodymium magnets especially effective in precast formwork, and how those traits translate into faster setup, cleaner workflows, repeatable precision, and lower maintenance demands in modern concrete plants.

Why Neodymium Magnet Precast Systems Matter

The global construction industry is undergoing a rapid transition toward industrialization, driven by the need for faster project delivery, improved structural quality, and reduced on-site labor. Precast concrete manufacturing stands at the forefront of this shift. As urbanization accelerates—a trend heavily tracked by institutions like the World Bank in their infrastructure development metrics—precast plants are under immense pressure to optimize their production cycles. A critical component of this optimization lies in the formwork systems used to shape concrete panels, beams, and columns before they cure. Traditional formwork fixing methods are increasingly being replaced by advanced magnetic shuttering systems, specifically those powered by neodymium magnets.

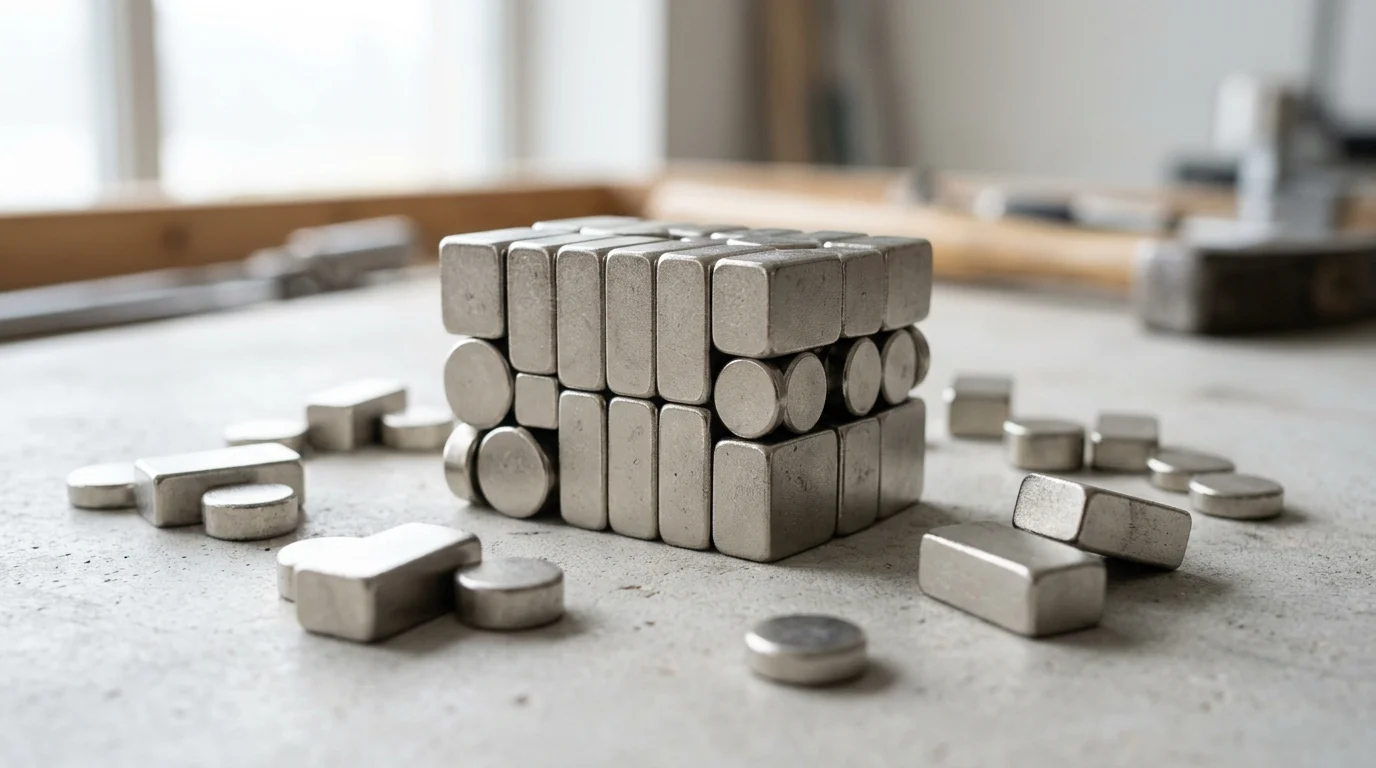

Neodymium magnets, composed of an alloy of neodymium, iron, and boron (NdFeB), represent the strongest type of permanent magnet available commercially. In the context of precast concrete, these magnets are integrated into robust steel housings equipped with push-button release mechanisms. This integration creates a dynamic tooling solution that allows operators to secure heavy steel or timber formwork to steel casting beds with immense precision and force. Understanding why neodymium magnet precast systems matter requires examining both the operational bottlenecks they resolve and the overarching commercial advantages they deliver to modern precast facilities.

Productivity benefits in precast operations

In a standard precast concrete plant, measuring, positioning, and securing formwork can consume 30% to 40% of the total production cycle. Traditional methods rely heavily on manual labor, requiring workers to weld or bolt formwork directly to the steel casting tables. Neodymium magnet systems fundamentally alter this workflow by introducing a toolless, rapid-deployment mechanism. By utilizing integrated magnetic boxes, operators can position the shuttering profile exactly where required and engage the magnet with a simple downward push or a strike from a rubber mallet.

This modular approach translates to significant productivity gains. Time-motion studies in high-capacity precast yards indicate that magnetic formwork systems can reduce setup and stripping times by up to 70% compared to traditional welding or bolting. Furthermore, the use of magnets allows for infinite adjustability. If a formwork line needs to be moved by a few millimeters to accommodate a design change or correct an alignment error, operators can simply disengage the magnet using a specialized release lever, reposition the shuttering, and re-engage the system in a matter of seconds. This level of agility is crucial for plants producing custom architectural panels or varying batch sizes, where rapid changeovers dictate daily throughput.

Commercial drivers behind adoption

The adoption of neodymium magnet systems is largely propelled by compelling commercial drivers, primarily centered around labor cost reduction and asset preservation. The precast industry consistently faces shortages of skilled labor, particularly certified welders and experienced formwork carpenters. Magnetic systems deskill the setup process, allowing general plant workers to achieve precise formwork placement without specialized training. This shift not only lowers direct hourly labor costs but also mitigates the risk of human error, thereby reducing the defect rate in the finished concrete elements.

Beyond labor, the preservation of capital equipment is a decisive factor in the return on investment (ROI) calculations for precast plants. The primary asset in any precast facility is the steel casting bed, which requires a perfectly smooth, flat surface to ensure the quality of the concrete finish. Continuous welding and grinding severely degrade these steel tables, leading to surface pitting, warping, and the eventual need for costly resurfacing or complete replacement. A standard steel casting bed can cost upwards of $50,000 to $100,000 depending on its dimensions. By eliminating the need to weld or drill into the bed, neodymium magnets extend the operational lifespan of casting tables by an average of 3 to 5 years, yielding substantial long-term capital savings that easily justify the initial procurement cost of the magnetic systems.

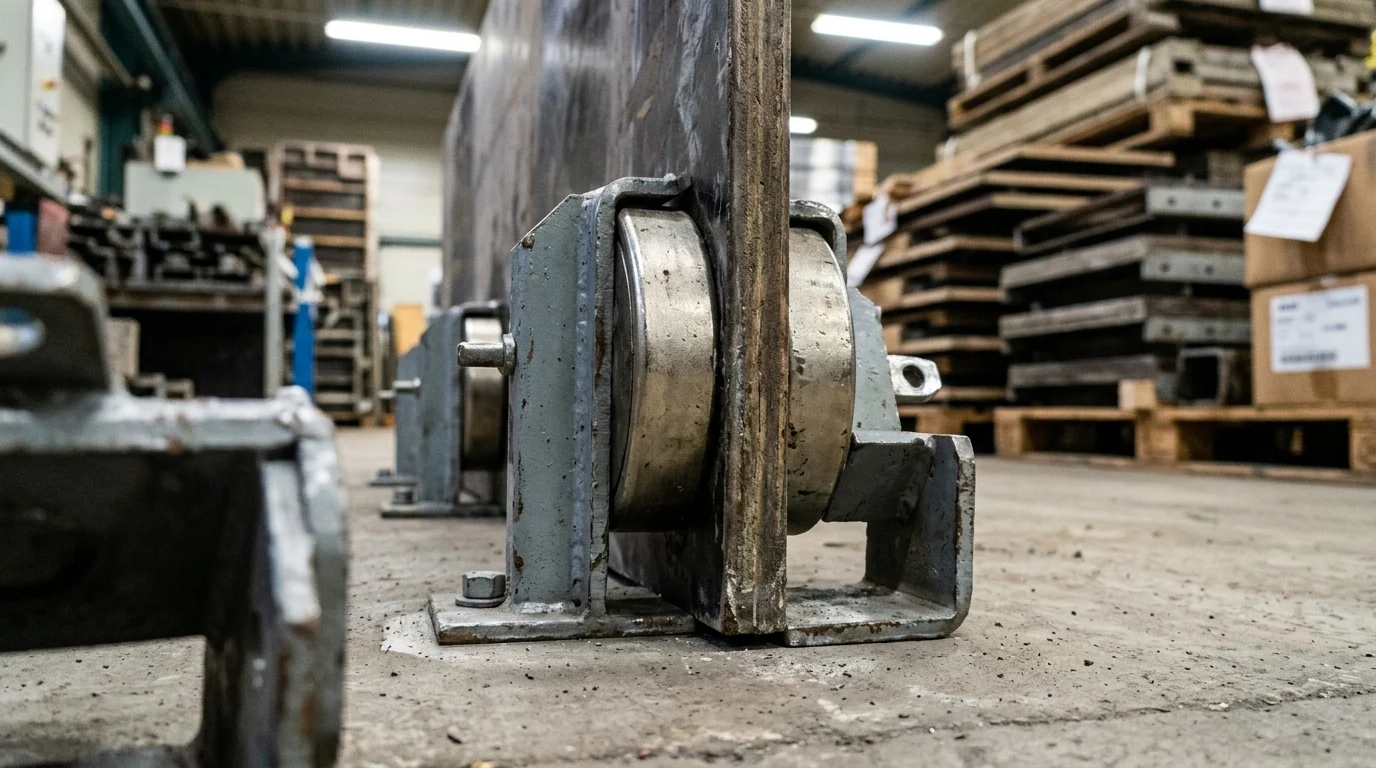

What Makes Neodymium Magnets Suitable for Precast Formwork

While various types of permanent magnets exist—including ferrite, alnico, and samarium cobalt—neodymium-iron-boron (NdFeB) magnets are uniquely suited for the demanding environment of precast concrete manufacturing. The fundamental requirement for any precast fixing system is the ability to generate massive holding force within a highly compact footprint. Precast formwork is often dense and heavy, and it must withstand the immense hydrostatic pressure of wet concrete poured at varying depths. Neodymium magnets deliver the highest maximum energy product (BHmax) of any commercial magnetic material, typically ranging from 35 to 52 MegaGauss-Oersteds (MGOe).

This exceptional energy density allows precast equipment engineers to design magnetic shuttering boxes that are small enough to be easily handled by a single operator but powerful enough to lock multi-ton formwork securely in place. The engineering of these systems goes far beyond simply placing a raw magnet on a steel table; it involves sophisticated magnetic circuit design, protective housing, and mechanical actuation to make the raw power of the NdFeB alloy usable in a rugged industrial setting.

Magnetic properties, holding force, and housing design

The holding force of a precast magnet is determined by both the grade of the neodymium material and the design of its steel armature. In precast applications, holding forces typically range from a minimum of 450 kg for lightweight sandwich panels up to 3,000 kg for massive infrastructural columns and heavy retaining walls. To achieve these extreme pull forces efficiently, the raw neodymium blocks are arranged within a specific magnetic circuit, often utilizing a U-shaped steel profile. This steel profile acts as a flux concentrator, directing the magnetic field lines downward toward the contact surface of the casting bed, minimizing magnetic leakage and maximizing the sheer adhesive force.

Because sintered neodymium is intrinsically brittle and susceptible to chipping or shattering upon heavy impact, the housing design is critical. The magnetic circuit is permanently encased within a robust outer shell, typically manufactured from high-strength carbon steel or stainless steel. This outer box not only protects the delicate magnet core from physical impacts, dropped tools, and heavy machinery, but it also provides the structural framework for attaching various formwork adapters, clamps, and brackets. The dimensional tolerance of the housing is usually machined to within ±0.1 mm to ensure perfectly flush contact with the casting bed, as even a microscopic air gap can drastically reduce the magnetic holding force.

Performance under vibration and repeated use

Precast concrete production relies heavily on high-frequency vibration to consolidate the wet concrete, remove entrapped air, and achieve a dense, structurally sound finish. Concrete vibrators, whether internal pokers or external table vibrators, typically operate at frequencies between 3,000 and 12,000 vibrations per minute (vpm). This intense, continuous vibration introduces severe lateral shear forces that attempt to slide the formwork across the casting bed. Neodymium magnet systems must be engineered to resist this dynamic energy without yielding a single millimeter.

To ensure performance under these extreme conditions, the internal magnetic core is often stabilized within the steel housing using heavy-duty epoxy resins or specialized polyurethane potting compounds. This potting acts as a shock absorber, dampening the vibrational energy before it can fracture the brittle NdFeB material. Furthermore, the high vertical pull force of the neodymium magnet translates into significant lateral friction (shear resistance) against the steel bed. As a general engineering rule in precast applications, the shear resistance of a magnetic box is approximately 20% to 30% of its rated vertical holding force. Therefore, a magnet rated for 2,100 kg of vertical pull will reliably resist up to 600 kg of lateral sliding force, maintaining dimensional accuracy throughout the most aggressive vibration cycles.

How precast magnet systems work

The operational brilliance of modern precast magnet systems lies in their mechanical actuation, commonly referred to as the push-button mechanism. Inside the steel housing, the magnetic core is suspended on a spring-loaded central spindle. In its inactive (retracted) state, the core is held a few millimeters above the bottom edge of the housing. Because magnetic force decreases exponentially with distance according to the inverse-square law, this small 2 to 5 mm air gap reduces the effective pull force by over 90%, allowing the operator to slide and position the heavy magnet box with minimal effort.

Once the formwork is perfectly aligned, the operator pushes down on the central button. This action overcomes the spring tension, driving the magnetic core downwards until it makes direct, flush contact with the steel casting bed. The magnetic circuit is instantly completed, locking the box in place with its full rated force (e.g., 1,000 kg). To release the system after the concrete has cured, the operator uses a specialized steel crowbar or lever tool. The tool hooks under the button or a designated lifting ring, providing mechanical leverage to pull the core back up, breaking the magnetic circuit and returning the system to its easily maneuverable, inactive state.

Neodymium Magnet Systems vs Traditional Fixing Methods

The transition from traditional fixing methods to neodymium magnet systems represents a fundamental evolution in precast manufacturing technology. For decades, plant operators relied on mechanical fasteners or metallurgical bonds to secure shuttering. While these legacy methods provided robust holding power, they introduced severe bottlenecks in production flow and caused continuous degradation of the manufacturing infrastructure.

Evaluating neodymium magnets against bolting and welding requires a comprehensive look at the trade-offs involved in daily plant operations. While the initial capital expenditure for magnetic systems is undeniably higher, the comparative advantages in speed, flexibility, and asset protection quickly offset the upfront costs. Understanding these dynamics is essential for plant managers tasked with modernizing their facilities and remaining competitive in the global construction supply chain.

Key trade-offs in setup, speed, and flexibility

The most prominent trade-off between magnetic systems and traditional methods involves the balance between initial setup costs and operational speed. Procuring high-quality neodymium precast magnets requires an investment ranging from $40 to $150 per unit, depending on the rated holding force and housing material. For a large precast yard requiring hundreds of units, this represents a significant capital outlay. However, the operational speed gained is transformative. A magnetic box can be positioned and engaged in 5 to 10 seconds, and it offers infinite flexibility for rapid, tool-free micro-adjustments.

In contrast, traditional methods are highly rigid. Bolting requires pre-drilled holes in the casting bed, restricting formwork placement to fixed grid patterns and severely limiting the plant’s ability to produce custom-dimensioned panels. Welding offers placement flexibility but requires 5 to 10 minutes per fixing point, demands certified welders, and generates hazardous fumes. More importantly, both bolting and welding are destructive. Drilling compromises the structural integrity of the bed, while the intense heat of arc welding causes localized warping, requiring constant grinding that eventually destroys the perfectly flat surface required for architectural-grade concrete finishes.

Comparison of magnets, bolting, and welding

To clearly illustrate the operational differences, the following table breaks down the performance metrics of neodymium magnets compared to standard bolting and welding techniques used in precast formwork.

The data demonstrates that while welding and bolting appear cheaper on a per-point consumable basis, their hidden costs are exorbitant. The destruction of casting beds and the massive increase in labor hours render traditional methods economically inefficient for modern, high-throughput plants. Furthermore, magnetic systems align closely with modern safety and quality management systems. Plants adhering to ISO 9000 series standards for quality management find that magnetic shuttering drastically reduces non-conformities caused by formwork shifting or dimensional inaccuracies, ensuring a higher yield of compliant precast elements.

How to Evaluate Product Quality and Supply

Procuring neodymium precast magnet systems is a critical supply chain decision that directly impacts the safety and efficiency of a concrete plant. A magnet failure during a pour is a catastrophic event; if the formwork blows out under the hydrostatic pressure of wet concrete, the result is wasted material, severe production delays, and significant safety hazards for the workers on the floor.

Consequently, buyers must evaluate product quality with rigorous scrutiny. This involves looking past the basic holding force claims and examining the metallurgical grades, environmental resistances, and manufacturing tolerances of the supply base. Additionally, understanding the logistics of international magnet procurement—including shipping regulations and lead times—is vital for seamless plant integration.

Material grades, coatings, tolerances, and testing

The core performance of the system is dictated by the specific grade of the NdFeB alloy. Manufacturers typically utilize grades ranging from N42 to N52 for precast applications. The number indicates the maximum energy product, while subsequent letters indicate temperature tolerance. Because the raw magnet is highly susceptible to oxidation, premium precast magnets are treated with multi-layer protective coatings, most commonly Nickel-Copper-Nickel (Ni-Cu-Ni), though zinc or heavy-duty epoxy coatings are also utilized depending on the manufacturer’s proprietary design.

Tolerances and testing protocols separate premium suppliers from low-cost producers. The steel housing must be machined to a flatness tolerance of ±0.1 mm to ensure maximum contact area with the bed. Reputable manufacturers validate their products using universal testing machines, providing batch test reports that certify the vertical pull force. Buyers should insist on these test reports, ensuring that a magnet advertised with a 1,000 kg pull force consistently tests at or above that threshold across a statistically significant sample size.

Corrosion resistance, temperature limits, and safety

Precast plant environments are highly corrosive, characterized by constant exposure to moisture, highly alkaline cement paste, and chemical form release agents. The outer housing must feature excellent corrosion resistance, often achieved through black oxidation, zinc plating, or the use of stainless steel casings. A compromised housing can allow moisture to reach the NdFeB core, leading to rapid oxidation, swelling, and complete loss of magnetic performance.

Temperature limits represent another critical safety and performance parameter. Many precast plants utilize accelerated curing methods, pumping steam or hot water through the casting beds to cure concrete in 12 to 16 hours rather than 28 days. Standard N-grade neodymium magnets begin to suffer irreversible magnetic loss at temperatures exceeding 80°C (176°F). If a plant utilizes high-temperature steam curing, buyers must specify high-temperature magnet grades. Grade M (up to 100°C), Grade H (up to 120°C), or Grade SH (up to 150°C) are mandatory to ensure the magnets do not permanently lose their holding force during the curing cycle.

Sourcing, lead times, packaging, and logistics

The global supply chain for raw neodymium and finished magnetic assemblies is complex, with the vast majority of processing concentrated in Asia. When sourcing these systems, plant managers must account for specific commercial parameters. Minimum Order Quantities (MOQs) for custom or branded precast magnets typically range from 50 to 100 units. Production lead times generally span 15 to 30 days, depending on the availability of the specific steel housing profiles and NdFeB grades.

Logistics and packaging require special attention due to the magnetic nature of the cargo. If expedited air freight is necessary, the packaging must comply strictly with International Air Transport Association (IATA) Dangerous Goods Regulations. Magnets must be packed in specialized wooden crates lined with thick iron sheets to shield the magnetic field and prevent interference with aircraft navigation systems. Because of these stringent shielding requirements and the heavy weight of the steel housings, sea freight is the standard, most economical method for international procurement. Navigating these cross-border supply chains effectively, often tracked through platforms aligned with the World Trade Organization frameworks for international commerce, ensures that precast facilities receive their critical tooling without customs delays or regulatory fines.

How to Choose the Right Precast Magnet System

Choosing the right precast magnet system is not a one-size-fits-all endeavor. Overspecifying the holding force results in unnecessary capital expenditure and forces workers to handle excessively heavy magnet boxes. Conversely, underspecifying the magnets risks formwork blowouts and dimensional inaccuracies during concrete pouring and vibration.

To optimize the investment, plant engineers must carefully match the magnet specifications to the specific types of precast elements being produced. This requires a systematic evaluation of formwork heights, expected hydrostatic pressures, and the long-term lifecycle costs associated with the daily operation and maintenance of the magnetic systems.

Step-by-step selection process

The selection process begins with calculating the maximum hydrostatic pressure exerted by the wet concrete, which is directly proportional to the height of the formwork. Step one involves identifying the tallest precast element the plant intends to produce. Step two is determining the required lateral shear resistance. As a standard engineering guideline, the lateral force exerted by the concrete and vibrators should not exceed 20% to 30% of the magnet’s rated vertical pull force. If a formwork profile requires 300 kg of lateral resistance to remain stationary, a magnet with a minimum vertical pull force of 1,000 kg to 1,500 kg must be selected.

Step three involves selecting the appropriate mechanical adapters. Precast magnets are rarely used in isolation; they are connected to timber, aluminum, or steel shuttering profiles via custom brackets. Buyers must choose systems that offer standardized threaded holes (such as M12 or M16 threads) on the top or sides of the steel housing. This standardization ensures that the plant can easily swap out adapter plates to accommodate different formwork materials without having to purchase entirely new magnet boxes.

Application-based selection examples

Different precast elements demand vastly different magnetic solutions. The spacing between magnets along a shuttering line also plays a critical role in distributing the holding force evenly. The following table provides a baseline guide for matching magnet specifications to common precast applications.

| Precast Element Type | Typical Formwork Height (mm) | Recommended Pull Force (kg) | Typical Magnet Spacing (m) | | :— | :— |

Key Takeaways

• The most important conclusions and rationale for Neodymium magnets precast
• Specs, compliance, and risk checks worth validating before you commit
• Practical next steps and caveats readers can apply immediately

Frequently Asked Questions

Why are neodymium magnets preferred for precast formwork?

They provide very high holding force in a compact size, so formwork can be fixed quickly, accurately, and without welding or drilling into the casting bed.

How much production time can magnetic shuttering save?

In many precast plants, setup and stripping time can drop by up to 70%, especially on steel beds with frequent mold changes.

Do neodymium magnet systems damage casting tables?

No. They help protect steel beds because they avoid welding, drilling, and grinding, which reduces surface wear and extends table service life.

Can Easyprecast magnetic systems work with custom panel layouts?

Yes. Magnetic boxes and shuttering profiles can be repositioned in seconds, making them practical for custom wall panels, beams, columns, and variable production runs.

What should operators check before using a precast shuttering magnet?

Make sure the steel bed is clean and flat, the magnet face is free of concrete residue, and the rated holding force matches the formwork load.
