Introduction
In precast concrete plants, magnetic adapters do more than hold formwork in place—they reshape how casting beds are used, reset, and protected. By replacing drilling, welding, and other mechanical fastening methods, they help speed setup, reduce labor, and support cleaner, more repeatable production. Their impact is especially clear in high-volume operations, where even small time savings per cycle can translate into major throughput gains. This article explains what magnetic adapters do, where they fit in the precast workflow, and why they have become a practical tool for improving efficiency, flexibility, and bed longevity in modern plants.
Benefits of magnetic adapters in precast plants
The transition from traditional mechanical fastening to magnetic fixing technology represents a major operational shift in modern precast concrete plants. Magnetic adapters serve as the critical interface between shuttering profiles, block-outs, and the steel casting bed. By eliminating the need to weld or drill into the casting surface, these adapters routinely reduce formwork setup and teardown times by 50% to 70%, profoundly impacting overall plant throughput and labor efficiency.
Why they matter in high-volume production
In high-volume precast environments, cycle time is the primary driver of profitability. When producing standardized elements like hollow-core slabs, double tees, or wall panels, the ability to lock and release formwork instantly allows facilities to increase daily output without expanding their physical footprint. A plant previously restricted to a 24-hour turnaround cycle can often compress its schedule, achieving production rates of 150 or more panels per day strictly through accelerated formwork handling and reduced idle time.
Where they fit in the casting workflow
Magnetic adapters are used across various stages of the precast workflow. They are initially deployed during the layout phase to secure side rails and edge forms firmly against the steel pallet. Subsequently, specialized modular adapters are used to fix embedded parts—such as lifting anchors, electrical conduit boxes, and window block-outs—preventing them from shifting during the pouring and high-frequency vibration stages. Once the concrete has cured, the adapters are quickly disengaged, streamlining the demolding process and allowing the casting bed to be immediately prepped for the next batch.

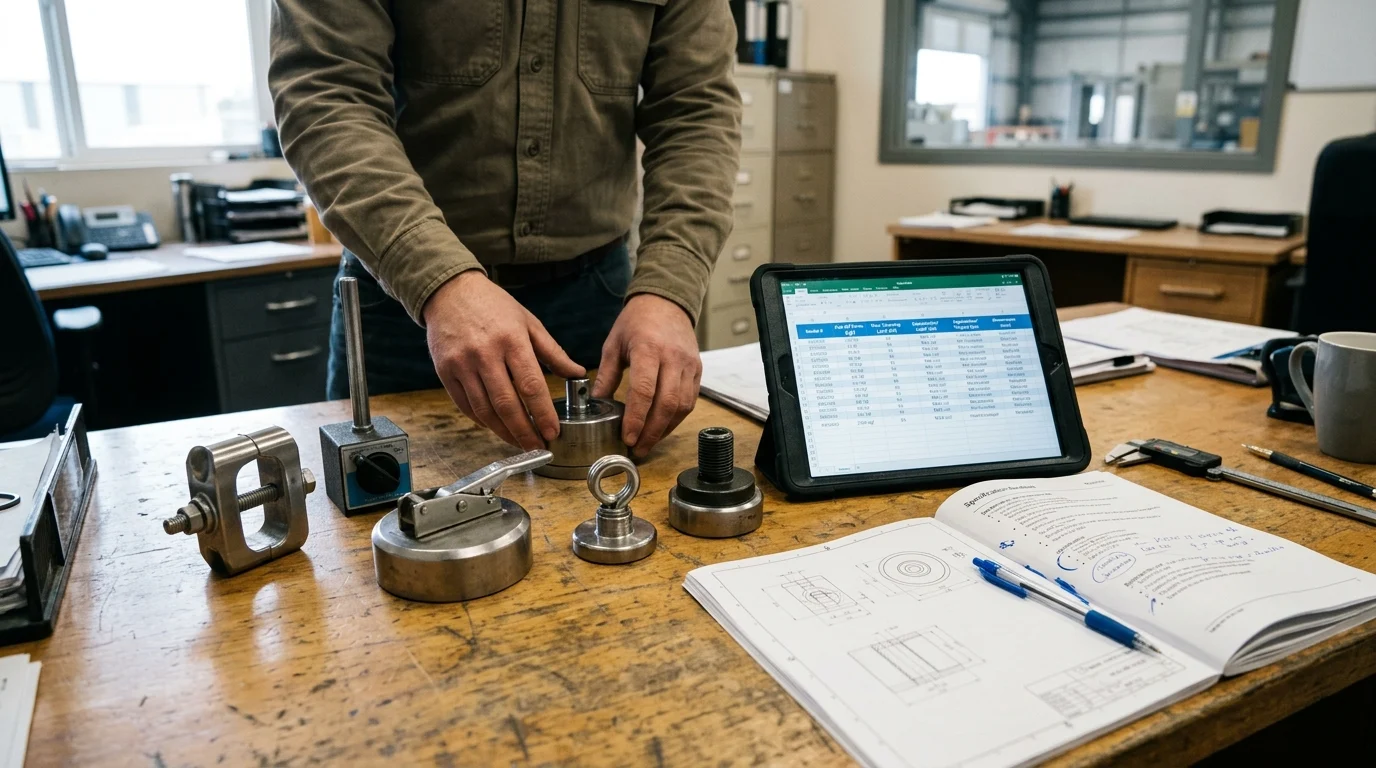

Magnetic adapter systems and key specifications
Understanding the technical parameters of magnetic adapter systems is essential for matching the equipment to the specific demands of a precast facility. These devices are precision-engineered tools that rely on high-grade rare-earth magnets to maintain structural integrity under the immense hydrostatic pressure of wet concrete.
Definition and working principle

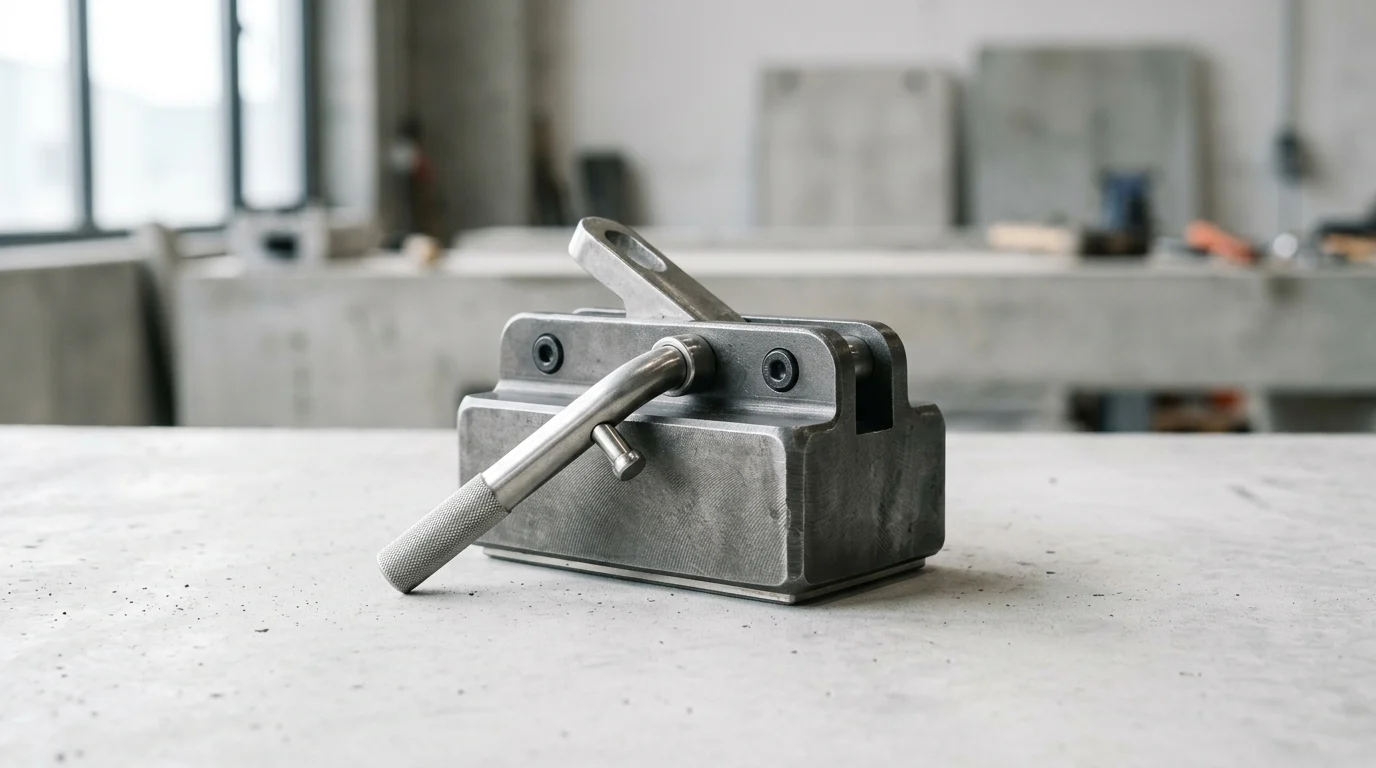

The core working principle of a magnetic adapter relies on an integrated neodymium magnet array housed within a protective steel or polyurethane casing. Most industrial systems use a mechanical push-button or lever mechanism. Pressing the button engages the magnetic field directly with the steel casting bed, creating an instant, powerful bond. Lifting the button with a specialized pry bar retracts the internal magnet, breaking the magnetic circuit and allowing the adapter to be easily repositioned or removed.
Key specifications to assess
Pull-off force is the most critical specification, typically ranging from 450 kg for lightweight block-outs to over 2,100 kg for heavy-duty shuttering systems. Plant operators must also evaluate operating temperature limits. Standard neodymium magnets begin to lose their magnetic strength permanently if exposed to temperatures above 80°C. For facilities using accelerated steam curing processes, high-temperature magnetic variants rated for up to 120°C must be specified to prevent premature degradation of the holding force.
Comparison factors for buyer evaluation
Buyers must evaluate adapters based on their intended load, formwork compatibility, and durability in harsh environments. Selecting the wrong class of adapter can lead to formwork blowouts or unnecessary capital expenditure.
| Adapter Class | Typical Pull Force | Casing Material | Primary Application |
|---|---|---|---|
| Light-Duty | 450 – 600 kg | Polyurethane / Steel | Electrical boxes, small inserts |
| Medium-Duty | 900 – 1,000 kg | Carbon Steel | Window block-outs, standard edge forms |
| Heavy-Duty | 1,800 – 2,100 kg | Stainless Steel / Treated Steel | High-wall panels, heavy shuttering profiles |
Comparison with welded and bolted fixing methods
For decades, precast manufacturers relied heavily on welding and bolting to secure formwork. While these mechanical methods provide undeniable holding strength, a direct comparison with modern magnetic adapters reveals significant operational and financial trade-offs, particularly concerning the long-term condition of the steel casting beds.
Performance trade-offs
Welding formwork directly to the pallet ensures zero movement during vibration, but it inflicts cumulative, irreversible damage on the steel surface. Each weld must be ground down after demolding, causing localized thinning, pitting, and warping. Over time, this degradation negatively affects the surface finish of the precast architectural elements. By switching to non-destructive magnetic adapters, plants can eliminate thermal distortion and extend the lifespan of a premium steel casting bed by 3 to 5 years.
Cost and lifecycle comparison
While magnetic adapters require a higher initial capital expenditure, their lifecycle costs are substantially lower due to reusability and reduced labor.
| Fixing Method | Initial Tooling Cost | Consumable Cost (Per Cycle) | Setup Time | Bed Degradation |
|---|---|---|---|---|
| Magnetic Adapters | High ($50-$150/unit) | Near Zero | Fast (< 1 min/unit) | None |
| Welding | Low | Moderate (Electrodes, gas) | Slow (5-10 min/weld) | Severe |
| Bolting / Drilling | Low | Low (Replacement bolts) | Moderate (3-5 min/bolt) | Moderate (Holes) |
Operational risks to consider
Transitioning to magnetic systems introduces new operational risks that must be proactively managed. The intense magnetic fields pose a severe pinching hazard to workers’ hands and fingers if the units are handled improperly or snap together unexpectedly. Furthermore, strong neodymium magnets can interfere with sensitive electronic devices and pacemakers, necessitating clear safety signage, mandatory training, and specialized handling protocols on the factory floor.
Selection, implementation, and maintenance
Successful integration of magnetic adapters requires careful selection, methodical implementation, and strict adherence to maintenance protocols. Even the highest-rated magnetic systems will fail if they are improperly matched to the plant’s production parameters or neglected in a harsh industrial environment.
Selection criteria by application
Selecting the correct adapter involves analyzing the formwork height, the slump of the concrete mix, and the specific vibration methodology used. For instance, plants using high-frequency consolidation tables operating at 50 Hz to 60 Hz require adapters with superior shear resistance to prevent lateral sliding. This often necessitates specifying units equipped with specialized friction-enhancing rubber skirts or mechanical locking pins to supplement the magnetic downforce.
Implementation steps
Implementation should begin with a pilot test on a single casting line to identify workflow bottlenecks. Workers must be trained on the correct use of release levers to prevent structural damage to the magnet housing. Additionally, the application of form oil and chemical release agents must be carefully calibrated; excessive oil buildup on the casting bed dramatically reduces the friction coefficient, potentially causing the magnets to slide under the pressure of wet concrete.
Maintenance and quality control
Routine maintenance is critical for preserving magnetic strength and operational safety. Concrete slurry, rust, and aggregate dust inevitably accumulate on the bottom surface of the magnet. A physical gap of just 0.2 mm between the magnet array and the steel bed can cause the vertical holding force to drop by up to 30%. Facilities must implement daily scraping routines and weekly cleaning schedules using non-corrosive solvents to ensure direct steel-to-steel contact is always maintained.
Procurement and deployment strategy
Procuring magnetic adapters is a strategic investment that requires rigorous supplier vetting and a well-planned deployment strategy. As the global supply chain for rare-earth materials fluctuates, buyers must secure reliable partners capable of delivering consistent quality at scale.
Supplier evaluation factors
Evaluating suppliers involves scrutinizing their manufacturing tolerances, raw material sourcing, and quality management systems. Buyers should prioritize manufacturers operating under recognized ISO standards to ensure consistent magnetic performance across large production batches. Procurement teams should also establish clear Minimum Order Quantities (MOQs), which typically range from 50 to 100 units for custom-engineered adapters, while negotiating favorable lead times for replacement parts.
Compliance and documentation
Proper documentation protects the buyer from substandard products and ensures operational safety. Suppliers must provide material test reports for the neodymium core and pull-force calibration certificates for every delivered batch. Monitoring international supply constraints via global databases like Trade Map can also help procurement teams anticipate price fluctuations in rare-earth metals, ensuring long-term budget stability for future plant expansions.
Deployment recommendations
A phased deployment strategy is highly recommended to manage capital outflow and minimize operational disruption. Facilities should initially outfit one complete production line, measure the precise reduction in setup times, and calculate the actual Return on Investment (ROI)—which typically falls between 6 and 9 months for high-volume precast plants. Once the efficiency metrics are validated by the floor managers, the procurement model can be confidently scaled to cover the remaining casting beds.
Key Takeaways
- The most important conclusions and rationale for Magnetic adapters precast
- Specs, compliance, and risk checks worth validating before you commit
- Practical next steps and caveats readers can apply immediately
Frequently Asked Questions
What do magnetic adapters do in a precast concrete plant?
They fix shuttering, block-outs, and embedded parts to steel casting beds without welding or drilling, speeding setup, protecting pallets, and simplifying demolding.
How much time can magnetic adapters save in precast production?
In many plants, they cut formwork setup and removal time by 50% to 70%, helping increase daily panel output and reduce labor hours.
How do I choose the right pull force for a magnetic adapter?
Match holding force to the formwork load: 450–600 kg for small inserts, 900–1,000 kg for standard edge forms, and 1,800–2,100 kg for heavy shuttering.
Can magnetic adapters be used with steam curing lines?
Yes, but only if they are rated for higher temperatures. Standard neodymium units can lose strength above 80°C; steam-curing plants should use versions rated up to 120°C.
Why choose magnetic adapters over welded fixing on steel pallets?
They avoid pallet damage, reduce maintenance, and allow fast repositioning. For precast plants seeking flexible layouts, Easyprecast-style magnetic systems improve efficiency without drilling or welding.
