Introduction
As precast factories push for faster cycles and tighter process control, the way formwork is fixed to casting beds has become a major source of hidden cost and delay. Magnetic systems address this by replacing welding and drilling with fast, reusable, non-destructive attachment that protects steel tables while simplifying setup and changeovers. This article explains how those systems work, where the efficiency gains come from, and why they matter for labor use, equipment longevity, and production consistency. The discussion that follows connects magnetic holding performance to real factory outcomes, from shorter preparation time to more reliable demolding and lower maintenance demands.
How Magnetic Systems Improve Efficiency in Precast Factories
The shift toward automated, highly optimized precast concrete production has necessitated phasing out destructive, time-consuming formwork fixing methods. Magnetic systems have emerged as a critical infrastructural upgrade for modern precast factories, replacing traditional welding and drilling with non-destructive, high-strength magnetic adhesion. By leveraging advanced permanent magnets, facilities can instantly secure formwork to steel casting beds, fundamentally altering the economics of setup, pouring, and demolding operations.
Why magnetic systems are becoming a productivity tool
The transition to magnetic fixation is driven by the demand for higher throughput and reduced material waste. In precast manufacturing, steel casting tables represent a significant capital investment. Traditional fastening methods compromise table integrity over time through repeated welding, grinding, and drilling. Magnetic systems utilize high-grade neodymium magnets enclosed in durable steel or aluminum housings, providing substantial holding forces ranging from 450 kg to over 2,100 kg per unit. This non-destructive methodology preserves the casting bed while offering the shear resistance necessary to withstand the hydraulic pressure of poured concrete and high-frequency vibratory compaction.
How they reduce cycle time and labor
Labor optimization is one of the most immediate benefits realized upon integrating magnetic systems. Manual layout and fixing of formwork can consume up to 30% of the total production cycle in a conventional plant. Push-button magnetic boxes and integrated magnetic side forms allow operators to position, engage, and release formwork in seconds. Industry data indicates that facilities transitioning to magnetic systems experience up to a 70% reduction in formwork setup and stripping times. This cycle time compression enables a higher daily casting frequency and drastically lowers the man-hours required per square meter of precast panel.
Where they deliver the biggest efficiency gains
While magnetic systems improve efficiency across the board, they deliver exponential gains in automated pallet circulation systems and high-volume carousel lines. In these environments, robots can automatically place, activate, and deactivate magnetic shuttering profiles based on CAD/CAM data. Additionally, complex architectural precast elements requiring frequent dimension changes benefit immensely from the infinite adjustability of magnetic blocks, which eliminates the constraints of pre-drilled grid holes on the casting table.

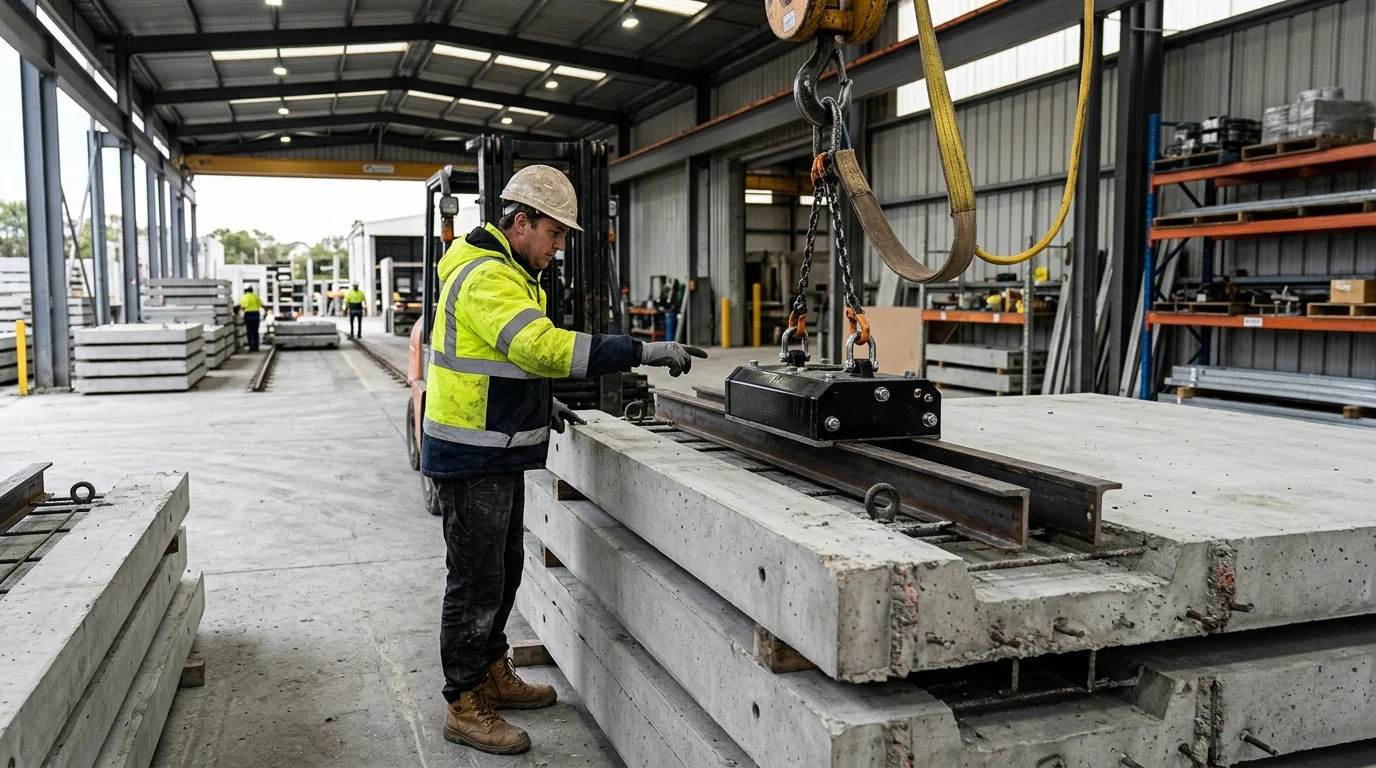

Magnetic Systems Used in Precast Factories
Precast factories utilize a specialized ecosystem of magnetic hardware, with each component engineered to address specific layout and structural requirements. Selecting the appropriate hardware depends on panel geometry, the vibration methods employed, and the level of automation on the factory floor.
Common types of magnetic systems
The hardware ecosystem comprises several distinct categories tailored for different precast applications.
| System Type | Typical Holding Force | Primary Application |
|---|---|---|
| Shuttering Box Magnets | 450 kg – 2,100 kg | Securing side forms and custom edge profiles |
| Magnetic Chamfers | 50 kg – 150 kg | Creating beveled edges, drip grooves, and reveals |
| Insert Magnets | 50 kg – 200 kg | Fixing electrical boxes, PVC pipes, and lifting anchors |
| U-Profile Formwork | Integrated (900 kg+) | High-speed automated placement in carousel lines |
Box magnets (or button magnets) are the most versatile, capable of clamping various timber or steel profiles via adapter plates. Insert magnets specifically address the intricate placement of MEP (mechanical, electrical, and plumbing) voids, preventing costly concrete ingress during pouring.
How they support faster setup and repeatable positioning
Speed and repeatability are achieved through the mechanical design of the magnetic units. Most box magnets feature a push-button activation mechanism. When the button is depressed, the internal neodymium (NdFeB, typically N42H or higher grade) magnetic block makes direct contact with the steel table, closing the magnetic circuit and generating maximum holding force. To release the magnet, operators use a specialized lever tool to pry the button upward, breaking the magnetic field and allowing the unit to be repositioned effortlessly. This exact, repeatable mechanism ensures that formwork can be placed with millimeter precision before it is locked down.
Which production environments benefit most
Facilities producing flat 2D elements—such as solid floor slabs, half-slabs, and sandwich wall panels—see the highest utilization rates of magnetic systems. These production environments require frequent changes to panel dimensions, including length, width, and window or door block-outs. Magnetic systems allow operators to instantly reconfigure the casting bed for a new panel design without the delays associated with patching old drill holes or grinding off tack welds from previous batches.
Magnetic Systems vs Traditional Fixing Methods
Evaluating the transition to magnetic fixation requires a rigorous comparison against traditional methods such as tack welding, bolting, and clamping. While legacy methods have low initial component costs, they carry hidden operational expenses related to labor, equipment maintenance, and quality control.
Key comparison points for evaluation
A comprehensive evaluation must account for setup speed, tooling wear, and lifecycle costs.
| Evaluation Metric | Magnetic Systems | Welding / Tack Welding | Bolting / Drilling |
|---|---|---|---|
| Setup / Teardown Time | < 1 minute per unit | 5–10 minutes per unit | 3–5 minutes per unit |
| Formwork Damage | Zero (non-destructive) | High (requires grinding) | Moderate (holes require patching) |
| Table Thickness Req. | 8 mm – 12 mm minimum | Any thickness | Any thickness |
| Initial CAPEX | High ($50–$250 per unit) | Low (consumables only) | Low (bolts/anchors) |
This comparative matrix highlights that while magnetic systems require higher upfront capital expenditure, they eliminate table degradation and drastically reduce consumable costs associated with welding wire, grinding discs, and replacement fasteners.
Differences in installation time and flexibility
Installation time and layout flexibility represent the most stark operational differences. Welding requires skilled labor, specialized personal protective equipment (PPE), and significant time to secure and later grind away welds. Bolting restricts formwork placement to predefined grid intervals, limiting design flexibility and requiring constant patching of unused holes to prevent concrete bleeding. Magnetic systems decouple the fastening mechanism from the table’s structural integrity, allowing infinite placement angles and instant securing. This flexibility is vital for producing custom architectural panels with non-standard geometries.
Trade-offs in holding force and reliability
The primary trade-off when adopting magnetic systems involves managing holding force reliability. Unlike a physical weld, a magnet’s vertical pull-off and lateral shear strength are highly dependent on the condition of the casting table. Rust, concrete debris, or oil buildup creates an air gap between the magnet and the steel bed; even a 1 mm gap can reduce the magnetic holding force by over 50%. Consequently, factories must implement strict table cleaning protocols. Additionally, magnetic systems require an initial investment ranging from $15,000 to $50,000 for a medium-sized facility, though the return on investment (ROI) is typically realized within 6 to 9 months through labor savings and reduced table maintenance.
Technical, Quality, and Compliance Factors
Implementing magnetic systems introduces specific technical and compliance variables that must be managed to ensure structural integrity during the concrete curing process. Factory engineers must align magnetic specifications with the physical realities of their casting beds and production parameters.
Core technical specifications to assess
When assessing magnetic hardware, core technical specifications extend beyond raw pull-off force. Operating temperature limits are critical; standard neodymium magnets begin to lose flux capacity (demagnetize) at temperatures exceeding 80°C. For factories utilizing accelerated curing methods, such as steam curing beds or heated circulation pallets, high-temperature magnetic variants rated for 120°C to 150°C must be specified. Additionally, the thickness of the factory’s steel casting tables dictates magnetic performance. To achieve the rated holding force, the steel table must typically be between 8 mm and 12 mm thick to fully absorb the magnetic flux lines; thinner tables will result in magnetic saturation and a drastically reduced clamping force.
Effects on dimensional accuracy and repeatability
Dimensional accuracy in precast manufacturing demands strict adherence to tolerances, often within ±2 mm across a large panel. Magnetic systems mitigate the risk of formwork displacement during the pouring and vibration phases. The lateral shear force—typically calculated as 20% to 30% of the vertical pull-off force—must be sufficient to resist the hydrostatic pressure of self-compacting concrete (SCC) and the kinetic energy from external vibrators. Proper spacing of magnetic boxes (e.g., placing a 900 kg magnet every 1.2 meters along a side form) ensures that the formwork remains perfectly rigid, eliminating bowing and ensuring exact repeatability across production batches.
Procurement, safety, and compliance checks
Procurement and safety compliance require rigorous verification. Reputable suppliers should provide pull-off testing certificates verifying the stated capacity under laboratory conditions. From a safety perspective, engineering teams must apply a safety factor—typically 1.5x to 2x the anticipated lateral shear force—when calculating the number of magnets required per formwork length. Furthermore, handling high-strength magnets poses pinch hazards to personnel. This necessitates compliance with occupational safety standards regarding the storage of magnetic devices and the use of non-magnetic handling tools during maintenance.

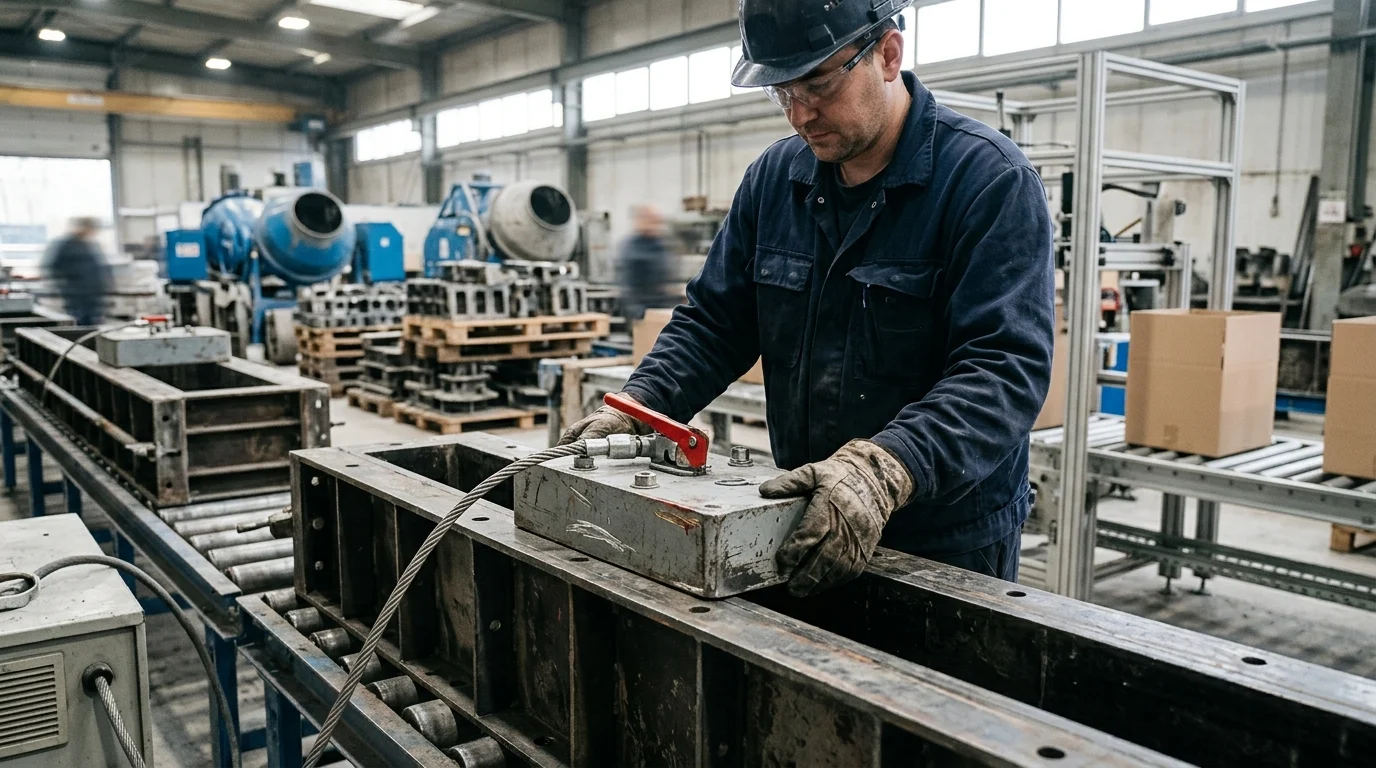

Selecting and Implementing Magnetic Systems
Transitioning a precast facility to magnetic fixing systems requires a structured procurement and implementation strategy. Success depends on accurately matching the hardware to the facility’s specific production profile and establishing new standard operating procedures for the workforce.
A step-by-step selection process
A step-by-step selection process begins with a comprehensive audit of existing casting beds, focusing on steel thickness, surface flatness (ideally < 2 mm deviation per meter), and current demolding processes. Next, production managers should categorize their most common panel depths and heights to determine the required shear forces. For standard 150 mm to 200 mm solid slabs, 900 kg box magnets are generally sufficient. For heavy retaining walls or elements exceeding 300 mm in depth, 1,800 kg or 2,100 kg units paired with heavy-duty adapter brackets are required. Procuring a small batch for a localized pilot test is highly recommended before committing to a factory-wide hardware overhaul.
Pilot metrics to track
During the pilot phase, production managers must track specific key performance indicators (KPIs) to validate the investment. Key pilot metrics include setup minutes per square meter of formwork, which should target a reduction to less than 5 minutes per panel. Additionally, quality control teams should monitor the defect rate related to concrete bleeding or dimensional drift, indicating whether the magnets provide adequate shear resistance. Tracking worker ergonomic incidents is also crucial, as eliminating heavy sledgehammers, welding gear, and crowbars typically results in a measurable drop in repetitive strain injuries and fatigue-related downtime.
How to build an implementation plan
Building a long-term implementation plan involves workforce training and preventative maintenance scheduling. Operators must be trained on the correct actuation of the magnets and the importance of using designated release levers to prevent internal mechanical damage. Maintenance protocols must mandate daily cleaning of magnetic contact surfaces with non-magnetic scrapers and periodic lubrication of the push-button spring mechanisms. With rigorous adherence to these maintenance plans, a high-quality magnetic formwork system is expected to deliver a reliable operational lifespan of 3 to 5 years, continuously driving down the per-unit cost of precast manufacturing.
Key Takeaways
- The most important conclusions and rationale for Magnetic Systems
- Specs, compliance, and risk checks worth validating before you commit
- Practical next steps and caveats readers can apply immediately
Frequently Asked Questions
What makes magnetic systems more efficient than welding or drilling formwork?
They lock formwork to steel casting beds in seconds, avoid table damage, and cut setup and stripping time significantly in repeat precast production.
Which magnetic products are most commonly used in precast factories?
Common options include shuttering magnets, magnetic shuttering systems, insert magnets, magnetic chamfer strips, and adapters for different mold and table setups.
How do shuttering magnets reduce labor in daily production?
Operators can position, activate, and release forms quickly with push-button magnets, reducing manual fixing work and helping increase daily casting cycles.
When should a precast factory use insert magnets?
Use insert magnets when fixing electrical boxes, pipes, or lifting anchor positions to prevent movement and concrete leakage during pouring and vibration.
